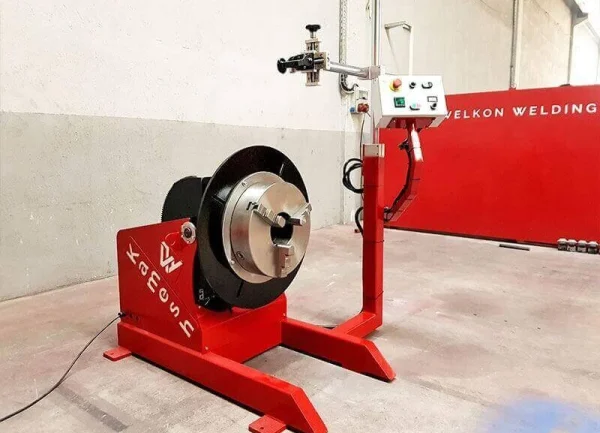

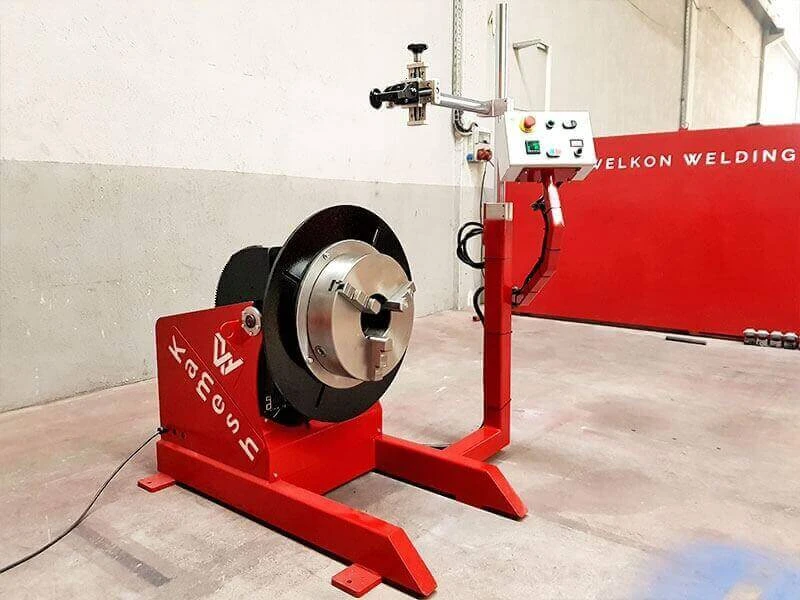

Rotary Welding Machine
Our Rotary Welding Machines provide continuous, precise welds by rotating the workpiece, ensuring consistent results and increased productivity for large-scale production.
Technical Details of Rotary Welding Machine
| Technical Details | WWPOZ100 | WWPOZ250 | WWPOZ500 | WWPOZ1000 | WWPOZ3000 | WWPOZ5000 |
|---|---|---|---|---|---|---|
| Lated Load Capacity (KG) | 100 | 250 | 500 | 1000 | 3000 | 5000 |
| Rated Center Of Gravity (MM) | 150 | 150 | 150 | 150 | 150 | 150 |
| Rated Eccentrcity (MM) | 150 | 150 | 150 | 150 | 150 | 150 |
| Table Rotation Degree (º ) | 360 | 360 | 360 | 360 | 360 | 360 |
| Tilt Direction | Right -Left | Front | Front | Front | Front | Front |
| Rated Tilt Torgue (º ) | 120 | 120 | 120 | 120 | 120 | 120 |
| Input Power | 230 v -50 Hz | 230 v -50 Hz | 230 v -50 Hz | 230 v -50 Hz | 230 v -50 Hz | 230 v -50 Hz |
| Rotation motor (KW) | 0,25 | 0,37 | 0,37 | 0,55 | 1,1 | 1,5 |
| Tilt Motor (KW) | 0,18 | 0,18 | 0,25 | 0,55 | 0,75 | 1,1 |
| Table Diameter (MM) | 400 | 600 | 700 | 1150 | 1250 | 1350 |
| T Slots | M10 Hole x 12 | M12 Hole x12 | M12 Hole x12 | M16 T Slot x 4 | M16 T Slot x 4 | M16 T Slot x 4 |
| Dimension (MM) | 920x800x800 | 1000x650x600 | 1150x750x700 | 1850x1150x1150 | 2000x1250x1250 | 2200x1350x1350 |
| Weight (KG) | 240 | 290 | 350 | 1450 | 1850 | 2500 |
| Color | Red -Grey | Red -Grey | Red -Grey | Red -Grey | Red -Grey | Red -Grey |
WHY CHOOSE OUR Rotary Welding Machine ?
Our Rotary Welding Machine ensures continuous, high-quality welds with a rotating mechanism, ideal for high-volume production. It delivers precision and efficiency for a variety of welding applications.
Rotary Welding Machine
Rotary Welding Machines are specialized equipment used for welding cylindrical or round materials, such as pipes, tubes, or rods. The core feature of these machines is the rotation of the workpiece during the welding process, which allows for continuous and uniform welding along the circumference of the material. This type of machine is commonly used for applications like pipe joining, tank manufacturing, and other cylindrical welding tasks.
The process involves the workpiece being mounted on a rotating fixture while the welding head moves along the material. As the workpiece rotates, the welding torch or electrode maintains a consistent angle, ensuring a smooth and uniform weld around the entire circumference. This provides a strong, high-quality weld that is ideal for applications where precision and strength are critical.
Rotary welding machines can be used for various welding processes, such as TIG (Tungsten Inert Gas), MIG (Metal Inert Gas), and orbital welding, depending on the machine configuration and the specific requirements of the project.
Most Popular Questions for Rotary Welding Machine
Please check our most popular questions for our welding automation systems that we manufacture, to find answer easily. If you have any further questions, please inform us to get fast and correct answer.
Rotary Welding Machines are typically used for welding cylindrical materials like pipes, tubes, and rods. They can handle a variety of metals, including steel, stainless steel, aluminum, and titanium, depending on the welding process used (e.g., TIG, MIG, or orbital welding).
The rotary motion of the workpiece in a Rotary Welding Machine ensures that the welding head maintains a consistent angle around the circumference of the material. This allows for even heat distribution and uniform welds along the entire length of the joint, ensuring strong and reliable welds.
Yes, Rotary Welding Machines are ideal for high-volume production environments. They can be automated to weld large quantities of cylindrical materials quickly and consistently, making them particularly useful in industries like automotive, aerospace, and pipe manufacturing, where efficiency and precision are critical.
