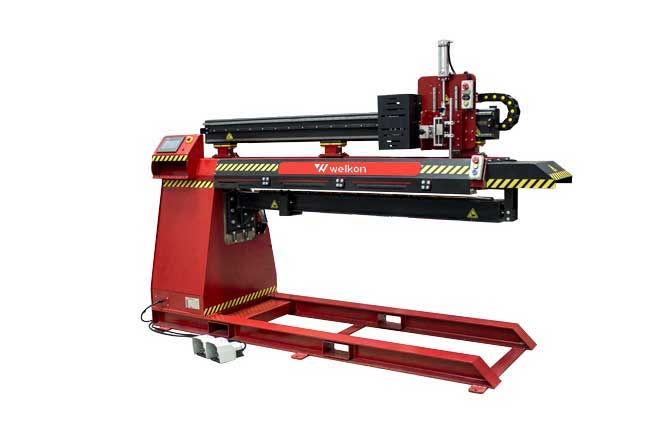

Seam Welding Machine - Longitudinal Welding Machine
Seam Welding Machine: Longitudinal Welding Machine is designed to provide Longitudinal Welding for parts that are bent in the forms of cylindrical, conical and rectangular as well as the sheet metals in the form of plates.
What is a Seam Welding Machine (Longitudinal Welding Machine)?
With Seam Welding Machine parts with the diameter of 100 – 3000 mm can easily be welded on different machine types. Machine with internal and external welding feature is manufactured with lengths ranging from 1 meter to 4 meters. For certain special conditions the machine length may increase as well. Right now the parts with maximum thickness of 0,60 mm can be welded. The thickness may go up to 20-25mm for the submerged welding applications. The longidutinal welding of the material and items such as the boilers, bath heaters, solar energy boilers, cooling tanks, natural gas chimneys, LPG tanks etc are mode on this machine. The welding systems such as submerged, gas metal and TIG work in sync with our machine.
Our Solutions & Benefits for Longitudinal Welding Machine
- High Quality
- Delivery Right on Time
- Experience
- Ready Stock
Seam Welding Machine Technical Details
| Technical Details | KWBKM-1000 | KWBKM-1500 | KWBKM-2000 | KWBKM-3000 |
|---|---|---|---|---|
| Work Pieces Diameter (Min.Max/MM) | 100-650 | 150-650 | 250-800 | 350-800 |
| Work pieces Lenght (MM) | 1000 | 1500 | 2000 | 3000 |
| Metarial Tichkness (MM) | 0,6-10 | 0,6-10 | 0,6-10 | 1-10 |
| Pressing Power (BAR) | 8 | 8 | 8 | 8 |
| Input Power | 380V-50 Hz | 380V-50 Hz | 380V-50 Hz | 380V-50 Hz |
| Welding Speed (MM/Dak) | 0-2000 | 0-2000 | 0-2000 | 0-2000 |
| free Speed (MM/Dak) | 3000 | 3000 | 3000 | 3000 |
| Dimension (MM) | 2100x2000x1200 | 2700x2100x1200 | 3250x2500x1200 | 4250x2500x1200 |
| Color | Red – Black | Red – Black | Red – Black | Red – Black |
| Welding Method | Tig /Migmag/Saw | Tig /Migmag/Saw | Tig /Migmag/Saw | Tig /Migmag/Saw |
| Weight KG | 1200 | 1600 | 2350 | 3000 |
Get a Quote
Please send us your inquiry with the form below.
Need more help?
Please call us today to get more informations about our machines.
Customer Services
+90 332 248 33 00
WELKON WELDING
WHY CHOOSE OUR Seam Welding Machine
Please take a look below the reasons why you should choose us and our Seam Welding Machine.
Quality
Analyze
Target Oriented
Seam Welding Machine - Longitudinal Welding Machine Usage Areas
The usage areas of the longitudinal machine are quite wide. It is used for longitudinal welding of workpieces of different shapes and thicknesses with this machine. Pipe welding machines can also be used for submerged arc welding works. It enables the works to progress rapidly by making mass production. With the precision production of the machine, it is possible to make the welding exactly at the desired point. With its strong clamping feature, welding is done perfectly. Among the areas where the longitudinal machine is used are the following.
In the manufacture of thermosiphon
In boiler manufacturing
In solar energy tank construction
In LPG cylinders
In natural gas chimneys
In cooling tank manufacturing
Longitudinal Welding Machine Manufacturer
Production is carried out for the sector in which it will be used by our company, which is a manufacturer of longitudinal welding machine. The machines produced by our company work in harmony with gas metal arc, submerged arc and tig welding machines. These machines provide to increase work efficiency and save time. The machines produced by our company have a centering system. In this way, it is enough to enter your measurements.
With the machine with a touch screen, the report of the work done can be taken. You can get the pipe welding machine you need by contacting our company. If you need a machine that makes welding with standard dimensions, we supply it from our ready stocks. When you want it to weld in special dimensions and wall thickness, we make the production in accordance with the specifications you want. You can contact our company for price information and detailed technical specifications of the product.
Longitudinal Welding Machine
It provides welding of cylindrical, rectangular, conical and circular cut sheets with a longitudinal welding machine. The machine takes this name because it welds these parts longitudinally. It is also called a pipe welding machine because it welds the tubular parts longitudinally. The machine, which aligns perfectly, makes the welding to the exact point.
Pipe welding machine is used for welding parts with diameter between 100 mm and 3000 mm. The machine that makes the weld from the inside out is also produced with a length between 1 m and 5 m. In addition, it can be produced in longer lengths if needed. It is possible to weld sheets with a wall thickness of 0.60 mm as standard. In addition, workpieces with greater wall thickness can also be welded when necessary.
Welkon Welding
Most Popular Questions for Longitudinal Welding Machine
Please check our most popular questions for our longitudinal welding machine that we manufacture, to find answer easily. If you have any further questions, please inform us to get fast and correct answer.
Yes. Welkon manufactures the longitudinal welding machine at any quantity you want.
Yes. Welkon exports the longitudinal welding machine to any country. You can contact us and inform which models you need and which country you are from.
Yes, you can always come to see and check our longitudinal welding machine.
