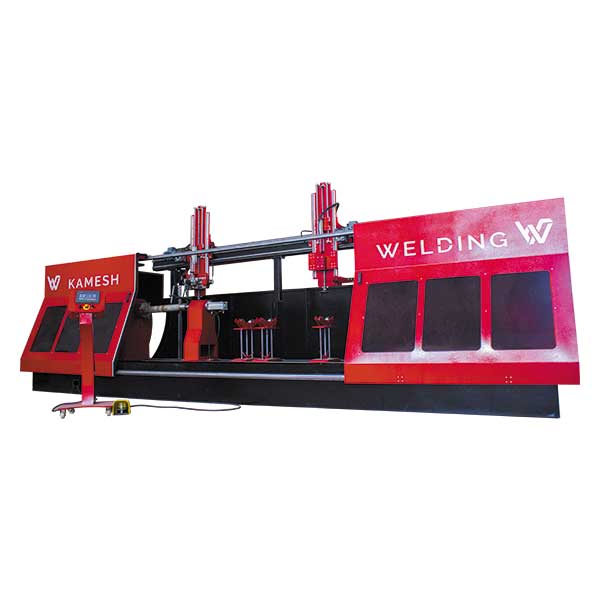

Circular Welding Machine
Circular welding machines have a wide range of applications in the manufacturing sector. It is possible to use this system for single layer, double (or more layer) welding as well as for tig welding, gas and submerged arc welding.
What is a Circular Welding Machine?

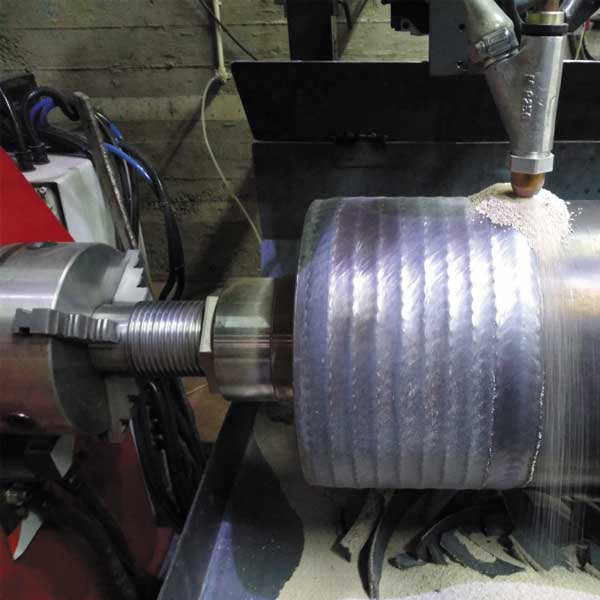

The joint to be welded in the system must be tightened in a non-slip manner and the welding head is welded while remaining on the rotating workpiece precisely.
Circular welding machines are often used in the manufacture of many workpieces such as circular lpg tanks, boilers and thermosyphons, hydraulic cylinders, conveyor rollers and conveyor drums, solar boilers. In addition, it is provided that the root weld passes under the welded areas so that better quality products can be produced.
It can easily weld to materials with diameters from 100 mm to 1000 mm, lengths from 300 mm to 6000 mm and all thicknesses from 1 mm to 10 mm. We can also manufacture larger diameters, thicknesses and lengths optionally. The materials to be welded are easily compressed by means of pneumatic push driven counter point system. Thus, the movement of the squeezed material during welding is prevented and precision welding is provided with single and double torch systems. As Welkon Welding, you can increase your production speed and produce better quality products with our circular welding machines.
Our Solutions & Benefits for Circular Welding Machines
- High Quality
- Delivery Right on Time
- Experience
- Ready Stock
Technical Details of Circular Welding Machine
| Technical Details | WWDKM-1000 | WWDKM-1500 | WWDKM-2000 | WWDKM-3000 |
|---|---|---|---|---|
| Metarial Diameter (Min.Max/MM) | 100-650 | 100-650 | 100-650 | 100-650 |
| Workpiece Lenght (MM) | 1000 | 1500 | 2000 | 3000 |
| Convertor Motor (KW) | 0,37 | 0,37 | 0,75 | 1,5 |
| Bevel Drive Diameter (MM) | 200 | 200 | 200 | 200 |
| Center Type | 5 mors | 5 Mors | 5 Mors | 5 Mors |
| Meterial Weight (KG) | 400 | 400 | 600 | 800 |
| Dimension (MM) | 1350x2200x1500 | 1350x2900x1500 | 1350x3400x1500 | 1350x4400x1500 |
| Color | Red -Grey | Red -Grey | Red -Grey | Red -Grey |
| Weldign Method | Tig /Migmag/Saw | Tig /Migmag/Saw | Tig /Migmag/Saw | Tig /Migmag/Saw |
WELKON WELDING
WHY CHOOSE OUR CIRCULAR WELDING MACHINES
Please take a look below the reasons why you should choose us and our circular welding machines.
Quality
Analyze
Target Oriented
Circular Welding Machine Usage Advantages
Thanks to the advantages of using the circular welding machine, it is used in all sectors where environmental welding is performed. It draws attention with the increase in work efficiency as well as the increase in welding quality. It saves time and labor. Maximum distortion is achieved by overlapping the parts. Root welding is done and the quality of production is increased. Production can be made in series with this machine, which enables multi-pass and single-pass welding. Among the benefits of using this machine are the following.
It is possible to make perfect welding of circular, circular workpieces end-to-end, intertwined.
It saves time and labor during production.
Twice the efficiency compared to normal sources.
Occupational safety is at a high level and the need for manpower is reduced.
Circular Welding Machine Manufacturer
As a circular welding machine manufacturer, we use the latest technology in all our products. We manufacture the machine in standard sizes as well as in special sizes for welding different sizes of materials. The speed of the machine is adjusted and it is possible to control it in this way. Our company produces all its products in high standards. Necessary controls are made and products are offered for sale after the test phase.
Where can you use Circular Welding Machine?
Circular welding machine is used for end-to-end welding of circular sections. It is also called as tank welding machine. The feature that gives it this name is that it ensures high quality welding of the circumferential and circular ends of the circular and cylindrical materials in the form of a tank. The root made penetrates the lower part of the source material and the quality of the source is at the maximum level.
With this machine, which saves time and labor, work efficiency is increased. Mass production is carried out and it is possible for the factories to operate uninterruptedly. It is used with Tig, submerged, gas metal arc sources. With the clamping head in the machine, the material is fixed and precision welding can be produced. The usage area of this machine, which increases the production speed, is increasing day by day. As a standard, the machine is produced with double torches. In addition, depending on the need, it is produced with a single torch or with more torches.
Where is the Circular Welding Machine Usage Areas?
Circular welding machine usage areas continue to increase with the advantages it offers. It is used for welding all circular and cylindrical workpieces between 100 mm and 1000 mm in diameter and 300 mm and 6000 mm in length. The wall thickness of the material to be welded can be between 1 mm and 10 mm. These are standard sizes, different sizes can also be produced according to the needs. This welding machine is needed in the manufacture of lpg tanks, thermosiphon, boiler, conveyor roller and conveyor drum, hydraulic cylinder, solar energy boilers with the tank welding machine that gives the product its name.

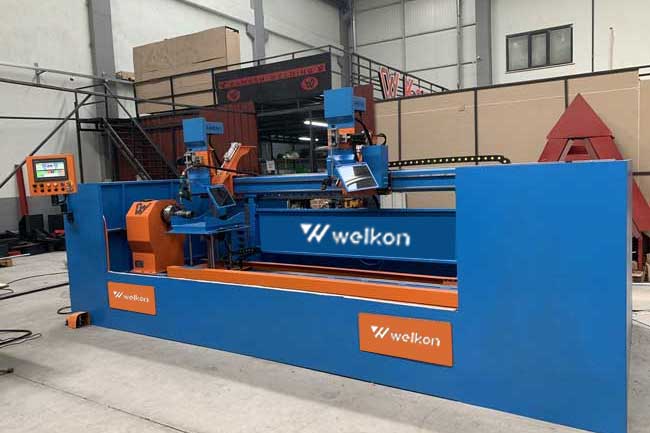

Circular welded processes are performed externally with the machine. The cylindrical material placed in the machine is fixed with the clamping system. Welding is done precisely with single or double torch with speed control adjustment. The basic elements of the machine include chassis, rotating shaft box, beam, pneumatic spot, welding torch, lifting mechanism, welding control systems. It increases the yield and doubles the production speed.
Welkon Welding
FAQ: Circular Welding Machines
Please check our most popular questions for our circular weblding machines that we manufacture, to find answer easily. If you have any further questions, please inform us to get fast and correct answer.
Yes. Welkon manufactures the circular welding machines at any quantity you want.
Yes. Welkon exports the circular weldinng machines to any country. You can contact us and inform which models you need and which country you are from.
Yes, you can always come to see and check our circular welding machines.
