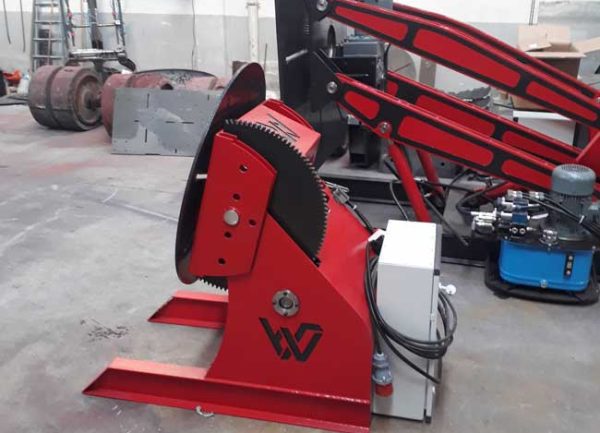

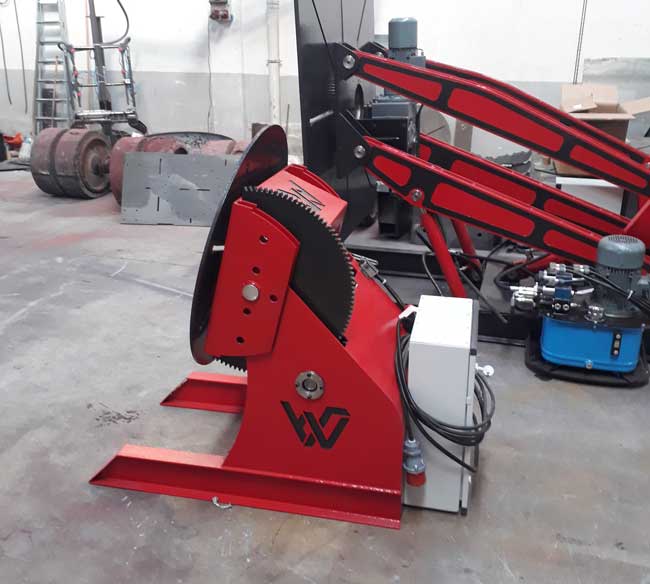

High Quality Automatic Rotary Welding Machine
Our Automatic Rotary Welding Machines provide continuous, precise welds with automated rotation of the workpiece, ensuring high-quality results and improved efficiency for large-scale production.
Technical Details of Automatic Rotary Welding Machine
| Technical Details | WWPOZ100 | WWPOZ250 | WWPOZ500 | WWPOZ1000 | WWPOZ3000 | WWPOZ5000 |
|---|---|---|---|---|---|---|
| Lated Load Capacity (KG) | 100 | 250 | 500 | 1000 | 3000 | 5000 |
| Rated Center Of Gravity (MM) | 150 | 150 | 150 | 150 | 150 | 150 |
| Rated Eccentrcity (MM) | 150 | 150 | 150 | 150 | 150 | 150 |
| Table Rotation Degree (º ) | 360 | 360 | 360 | 360 | 360 | 360 |
| Tilt Direction | Right -Left | Front | Front | Front | Front | Front |
| Rated Tilt Torgue (º ) | 120 | 120 | 120 | 120 | 120 | 120 |
| Input Power | 230 v -50 Hz | 230 v -50 Hz | 230 v -50 Hz | 230 v -50 Hz | 230 v -50 Hz | 230 v -50 Hz |
| Rotation motor (KW) | 0,25 | 0,37 | 0,37 | 0,55 | 1,1 | 1,5 |
| Tilt Motor (KW) | 0,18 | 0,18 | 0,25 | 0,55 | 0,75 | 1,1 |
| Table Diameter (MM) | 400 | 600 | 700 | 1150 | 1250 | 1350 |
| T Slots | M10 Hole x 12 | M12 Hole x12 | M12 Hole x12 | M16 T Slot x 4 | M16 T Slot x 4 | M16 T Slot x 4 |
| Dimension (MM) | 920x800x800 | 1000x650x600 | 1150x750x700 | 1850x1150x1150 | 2000x1250x1250 | 2200x1350x1350 |
| Weight (KG) | 240 | 290 | 350 | 1450 | 1850 | 2500 |
| Color | Red -Grey | Red -Grey | Red -Grey | Red -Grey | Red -Grey | Red -Grey |
WHY CHOOSE OUR Automatic Rotary Welding Machine ?
Our Automatic Rotary Welding Machine provides seamless, high-speed welding with minimal manual input. Its rotating mechanism ensures precise, consistent welds, ideal for high-volume production in various industries.
Automatic Rotary Welding Machine
An Automatic Rotary Welding Machine is a specialized type of welding equipment designed to automatically weld cylindrical or round materials, such as pipes, tubes, or other similar structures, using a rotating mechanism. The workpiece is mounted on a rotating fixture, and the welding process is carried out automatically, ensuring consistent and high-quality welds around the entire circumference of the material.
In an automatic rotary welding machine, the workpiece is secured on a rotating chuck or fixture, which causes the material to spin while the welding head, usually equipped with a welding torch or electrode, moves along the joint. The rotation of the material combined with the precise control of the welding parameters ensures an even, uniform weld around the entire circumference, making it ideal for applications where consistent welds are required.
These machines can be used with various welding processes such as TIG (Tungsten Inert Gas), MIG (Metal Inert Gas), and orbital welding. The automation system controls the welding speed, current, voltage, and other parameters, ensuring that the welding process remains consistent from start to finish, which is essential for high-volume production environments.
Most Popular Questions for Automatic Rotary Welding Machine
Please check our most popular questions for our welding automation systems that we manufacture, to find answer easily. If you have any further questions, please inform us to get fast and correct answer.
The machine rotates the workpiece while the welding head moves along the joint, ensuring uniform heat distribution and consistent welding along the entire circumference. This precise movement combined with automatic control of welding parameters guarantees high-quality welds with minimal variation.
Automatic Rotary Welding Machines can weld various materials such as steel, stainless steel, aluminum, and other alloys. The specific material used depends on the welding process (e.g., TIG, MIG, or orbital welding) and the machine's configuration.
Yes, Automatic Rotary Welding Machines are ideal for high-volume production as they are fully automated, offering fast, repeatable, and precise welds. Their efficiency makes them suitable for industries like automotive, aerospace, and piping, where large quantities of welded parts are needed consistently.
